UC200

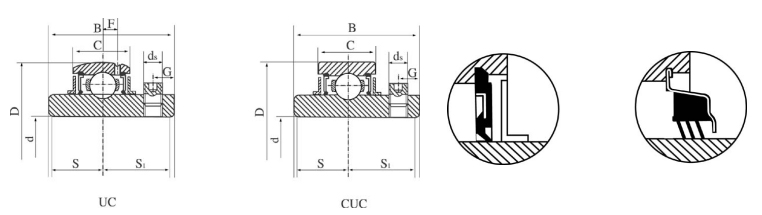

Bearing No.	Boundary Dimensions（mm/inch）									Basic Load Rating(N)		Weight

										Dynamic	Static	Kg(pc)
	d	D	B	C	S	s1	G	dS	F	Cr	Cor
UC201	12	47 1.8504	31 1.2205	17 0.6693	12.7 0.50	18.3 0.72	4.8 0.189	M6×0.75 1/4-28UNF	3.7 0.146	9880	6200	0.2
UC201-8	1/2.											0.19
UC202	15											0.19
UC202-9	9/16.											0.19
UC202-10	5/8.											0.19
UC203	17											0.18
UC203-11	11/16.											0.17
UC204	20											0.16
UC204-12	3/4.											0.16
UC205	25	52 2.0472	34.1 1.3425	17 0.6693	14.3 0.563	19.8 0.7795	5 0.197	M6×0.75 1/4-28UNF	3.9 0.154	10780	6980	0.2
UC205-13	13/16.											0.24
UC205-14	7/8.											0.23
UC205-15	15/16											0.21
UC205-16	1											0.2
UC206	30	62 2.4409	38.1 1.5	19 0.748	15.9 0.626	22.2 0.874	5 0.197	M6×0.75 1/4-28UNF	5 0.197	14970	10040	0.32
UC206-17	1-1/16.											0.33
UC206-18	1-1/8.											0.34
UC206-19	1-3/16.											0.32
UC206-20	1-1/4.											0.31
UC207	35	72 2.8346	42.9 1.689	20 0.7874	17.5 0.689	25.4 1	7 0.276	M8×1 5 /16-24UNF	5.7 0.224	19750	13670	0.48
UC207-20	1-1/4.											0.54
UC207-21	1-5/16.											0.51
UC207-22	1-3/8.											0.48
UC207-23	1-7/16.											0.45
UC208	40	80 3.1496	49.2 1.937	21 0.8268	19 0.748	30.2 1.189	8 0.315	M8×1 5 /16-24UNF	6.2 0.244	22710	19540	0.64
UC208-24	1-1/2.											0.68
UC208-25	1-9/16.											0.65
UC209	45	85 3.3465	49.2 1.937	22 0.8661	19 0.748	30.2 1.189	8 0.315	M8×1 5 /16-24UNF	6.4 0.252	24360	17710	0.68
UC209-26	1-5/8.											0.78
UC209-27	1-11/16.											0.74
UC209-28	1-3/4.											0.7
UC210	50	90 3.5433	51.6 2.0315	24 0.9449	19 0.748	32.6 1.283	10 0.394	M10×1 3 /8-24UNF	6.5 0.256	26980	19840	0.8
UC210-29	1-13/16.											0.92
UC210-30	1-7/8.											0.87
UC210-31	1-15/16											0.82
UC210-32	2											0.78
UC211	55	100 3.937	55.6 2.189	25 0.9843	22.2 0.874	33.4 1.315	10 0.394	M10×1 3 /8-24UNF	7 0.276	33370	25110	1.11
UC211-32	2											1.26
UC211-33	2-1/16.											1.2
UC211-34	2-1/8.											1.15
UC211-35	2-3/16.											1.09
UC212	60	110 4.3307	65.1 2.563	27 1.063	25.4 1	39.7 1.563	10 0.394	M10×1 3 /8-24UNF	7.6 0.299	36740	27970	1.54
UC212-36	2-1/4.											1.67
UC212-37	2-5/6.											1.59
UC212-38	2-3/8.											1.52
UC212-39	2-7/16.											1.45
UC213	65	120 4.3307	65.1 2.563	28 1.1024	25.4 1	39.7 1.563	10 0.394	M10×1 3 /8-24UNF	8.5 0.335	44010	34180	1.85
UC213-40	2-1/2.											1.94
UC213-41	2-9/16.											1.85
UC214	70	125 4.9213	74.6 2.937	29 1.1417	30.2 1.189	44.4 1.748	12 0.472	M12×1.5 7/16-20UNF	8.9 0.35	46790	37590	2.05
UC214-42	2-5/8.											2.26
UC214-43	2-11/16.											2.16
UC214-44	2-3/4.											2.06
UC215	75	130 5.1181	77.8 3.063	30 1.1811	33.3 1.311	44.5 1.752	12 0.472	M12×1.5 7/16-20UNF	9.2 0.362	50850	41260	2.21
UC215-45	2-13/16											2.46
UC215-46	2-7/8.											2.35
UC215-47	2-15/16											2.24
UC215-48	3											2.12
UC216	80	140 5.5118	82.6 3.252	32 1.2598	33.3 1.311	49.3 1.9409	12 0.472	M12×1.5 7/16-20UNF	9.5 0.374	55040	45090	2.8
UC216-49	3-1/16.											2.98
UC216-50	3-1/8.											2.85
UC216-51	3-3/16.											2.72
UC217	85	150 5.9055	85.7 3.374	34 1.3386	34.1 1.343	51.6 2.031	12 0.472	M12×1.5 7/16-20UNF	10.2 0.402	64010	53280	3.46
UC217-52	3-1/4.											3.68
UC217-53	3-5/16.											3.54
UC217-55	3-7/16.											3.25
UC218	90	160	96	36	39.7	56.3	12	M12×1.5	11.2	73830	60760	4.36
UC218-56	3-1/16.	6.2992	3.7795	1.4173	1.563	2.217	0.472	1/2-20UNF	0.441			4.47
